5V 3000MA AC/DC Adapter Power Supply characteristics

5V 3000MA power Adapter 5V 3A AC/DC Adapter Power Supply , Switching power supply Euro/US/UK/EK/AU/SAA style can be available . 5V 3A Switch Ac/dc Power Adapter , with OEM and ODM offered .

5V 3000MA power Adapter Technical parameters

Output voltage : 5V
Output current : 3A
Input voltage Range : 100～240Vac
Input voltage frequency : 50～60Hz
Protection : OCP , OVP , SCP and OPP
Burn-In Test : Full Load with 4 hours at 40 ± 5℃
Output connector : DC Plug
DC Jack ( Plug ) : According to customer requirements
M.T.B.F.: 30000 HOURS Min ; 25℃ SEE CONDITION
COOLING : SHOULD OPERATE WITHOUT FAN
Ripple and noise ( mVp-p ) : < : 1% of output voltage
operation temperature : -20℃ ～ +45℃ , 5% - 90%RH
storage temperature : －25℃ ～ +85℃ , 5% - 95%RH
Protection : over voltage protection short circu ited protection over power protection
Leakage current : 0.25 mA MAX 264V AC
Variation voltage : 90～264V
Variation Frequency : 47～63 Hz
Operation model : constant voltage
Output voltage regulation : 5%
Hi-pot test> : 3KV , 15mA , 5S
Standby power dissipation : Less than 0.1W ( Energy Efficiency Level Ⅵ ) ; Less than 0.3W ( Energy Efficiency Level Ⅴ )

5V 3000MA AC/DC Adapter Power Supply Plug type

EU,UK,AU,CN,US,KC,JPN,Taiwan,VDE plug

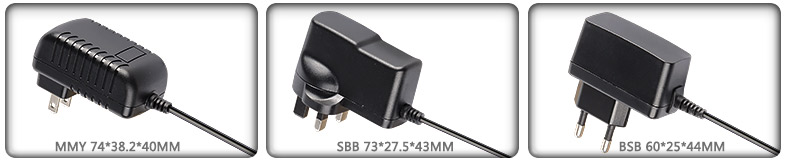

5V 3A AC/DC Switching Power Supply Dimension

The 5V power adapter series model

ABTYYY050 Model Inside 050 which represent the output voltage 5V , YYY are 3 digit numbers from 001 to 045 which represent the output current from 0.1 A to 4.5 A , The step value is 0.1 A

5V 3000MA AC/DC Adapter Power Supply Safety certification

KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,etc.Meet all related safety standard,Ultra low no-load/standby power consumption,meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements

5V Series Wall Mount AC DC Adapter Model and Output Specifications
